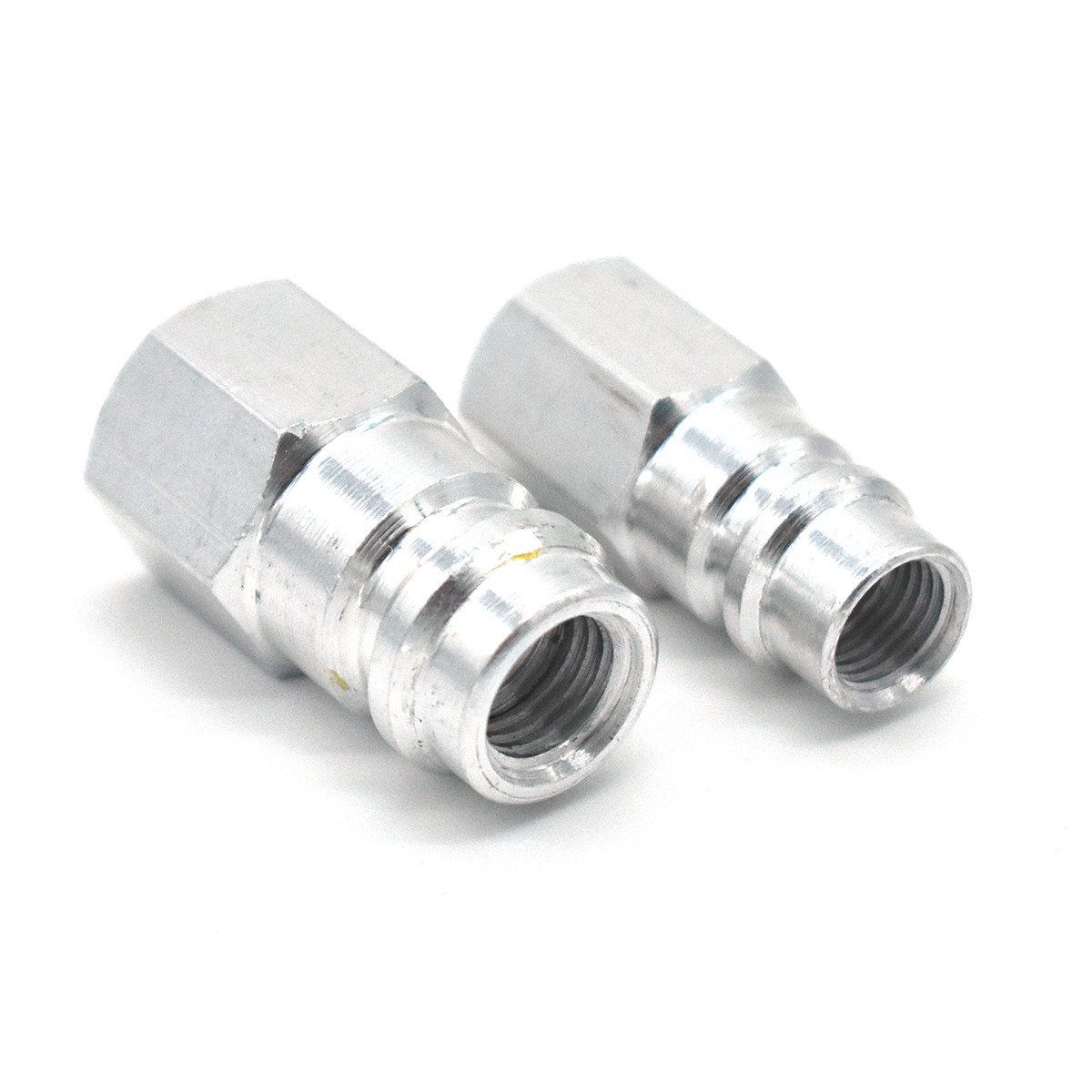

R134 Low and High Pressure Fittings with 1/4 SAE Female Thread

R134 Low and High Pressure Fittings with 1/4 SAE Female Thread (Reference: 080612) represent the essential technical solution for all refrigeration and automotive air conditioning professionals. These precision adapters guarantee a perfectly sealed connection on circuits using R134a refrigerant, thus meeting the strictest industry standards.

Applications and Areas of Use

These 1/4 SAE female fittings find their application in three main areas. In automotive air conditioning, they enable the connection of manifolds and charging stations on light vehicles, commercial vehicles and trucks equipped with R134a systems. Garage mechanics and specialized technicians use them daily for draining, evacuation and recharging operations of air conditioning circuits.

In commercial and industrial refrigeration, these fittings facilitate maintenance of cold rooms, refrigerated display cases, reversible air conditioners and heat pumps operating with R134a. Refrigeration technicians appreciate their reliability for troubleshooting interventions and commissioning new installations.

Finally, technical training centers and professional schools use these fittings in their educational workshops for learning refrigerant handling techniques, ensuring students receive training on authentic professional equipment.

Technical Specifications and Compatibility

The 1/4 SAE (Society of Automotive Engineers) female thread constitutes the international standard for high and low pressure connections in R134a circuits. This tapered thread ensures perfect sealing without requiring additional gaskets, thus avoiding risk of leaks and refrigerant losses.

These fittings are machined from high-quality brass alloys, offering excellent resistance to corrosion and temperature variations encountered in refrigeration circuits. The nickel-plated or chrome-plated finish guarantees optimal durability even in humid or saline environments.

The differentiated low/high pressure design allows immediate identification of the suction side (low pressure) from the discharge side (high pressure) of the circuit, preventing connection errors that could damage measuring or charging equipment.

Installation and Practical Use

Installing these R134 fittings requires following specific procedures to guarantee sealing and safety of interventions. Before any connection, it is essential to check thread cleanliness and eliminate any traces of oil, moisture or particles that could compromise sealing.

Tightening must be performed by hand initially, then finalized using an appropriate wrench while respecting the recommended torque. Excessive tightening risks damaging the tapered thread, while insufficient tightening may cause refrigerant leaks.

During maintenance operations, it is essential to completely purge the fittings before disconnection to avoid pressurized fluid splashing. After use, cleaning the fittings with suitable solvent and storage in a dry environment considerably extends their service life.

Expert Advice and Product Synergies

To optimize the use of these R134 fittings, experienced professionals recommend building a complete set including several examples of each type (low and high pressure). This redundancy allows continuing interventions even in case of accidental deterioration of a fitting.

Pairing with precision digital gauges and automated charging stations maximizes the efficiency of diagnostics and interventions. Multitanks fittings are particularly compatible with professional tools from reputable refrigeration industry brands.

A frequent error consists of reusing fittings that have suffered impacts or show wear traces on the threads. This practice can generate leaks that are difficult to detect and compromise measurement reliability. It is therefore recommended to regularly renew these technical consumables.

In winter periods, slightly preheating the fittings before use improves their handling and reduces condensation risks that could hinder sealing. Conversely, in summer, storing them away from excessive heat preserves their mechanical properties.

Technical Characteristics
