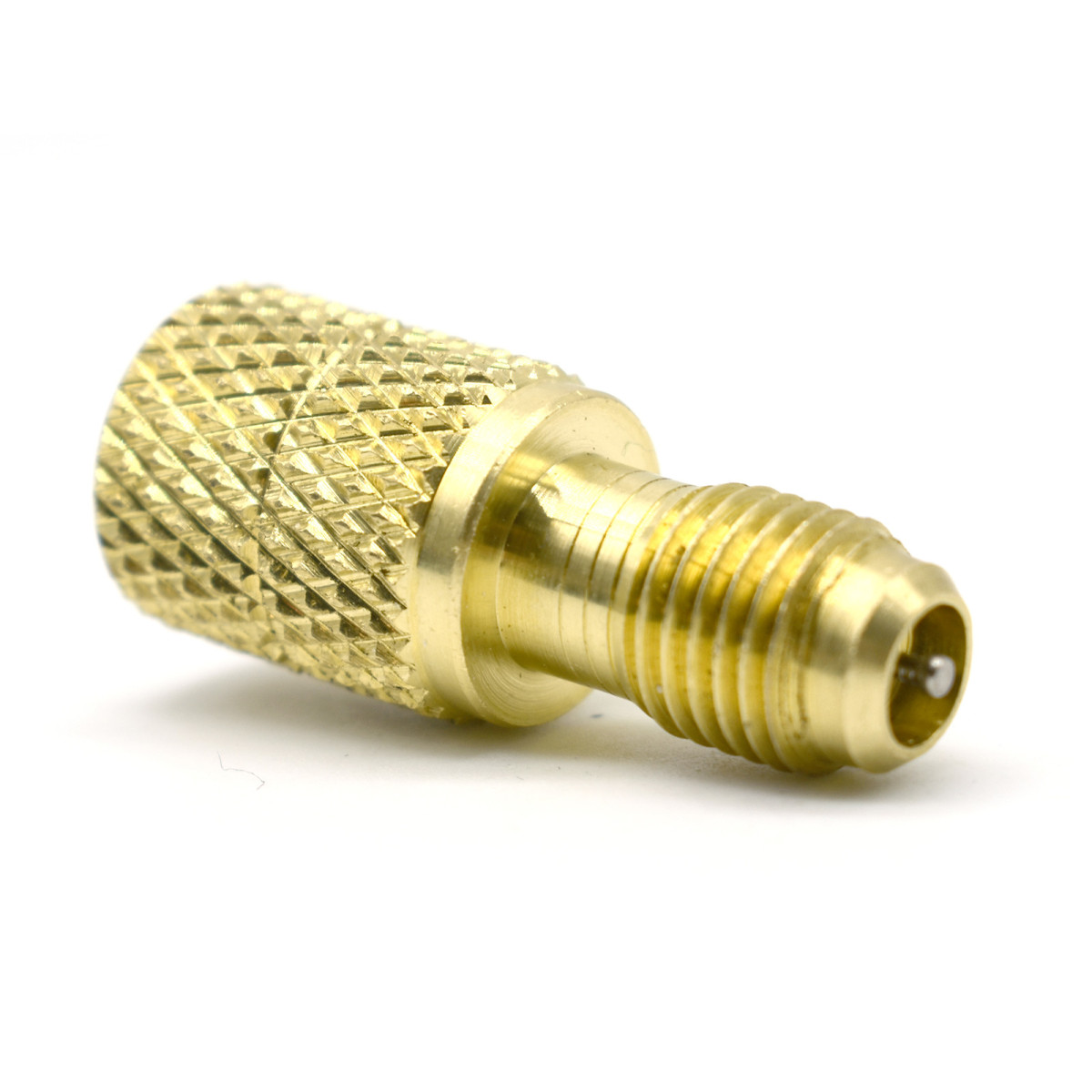

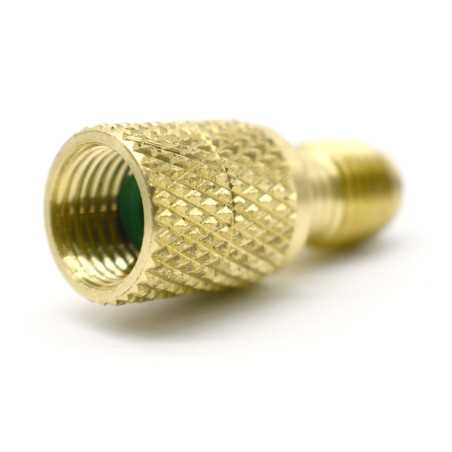

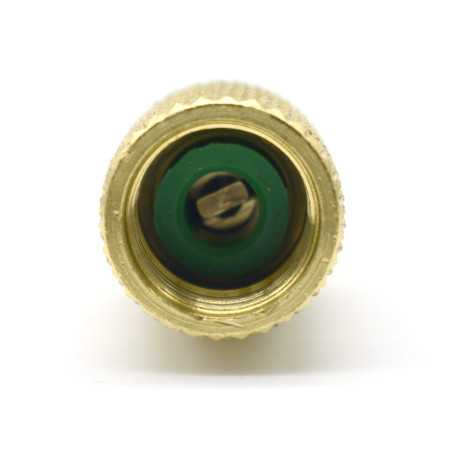

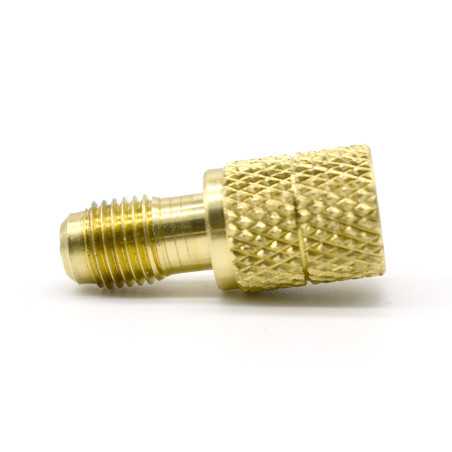

Male 1/4'' SAE - Female 5/16'' Brass Fitting for R410

Male 1/4'' SAE - Female 5/16'' Brass Adapter Fitting for R410A (Reference: 080611) represents a precision technical solution for air conditioning and refrigeration professionals. This high-quality adapter ensures compatibility between different equipment using R410A refrigerant gas, providing reliable conversion from 1/4 inch SAE male fitting to 5/16 inch female fitting.

Professional applications and use cases

This adapter fitting is primarily intended for professional refrigeration technicians, air conditioning technicians and installers specialized in cooling systems. It finds its utility during maintenance, repair or installation operations of air conditioning equipment operating with R410A refrigerant.

Individuals equipped with air conditioning systems can also use this adapter to connect charging manifolds, leak detectors or any other R410A-specific tooling. Its design allows rapid adaptation between equipment from different brands with varied connection standards.

The adapter also facilitates evacuation, refrigerant charging and leak testing operations on existing installations, thus avoiding complete replacement of original hoses or fittings.

Technical specifications and materials

Manufactured from superior quality brass, this adapter exhibits excellent resistance to corrosion and chemical agents present in refrigeration circuits. Brass also offers optimal thermal conductivity and exceptional service life even under intensive use conditions.

Connection dimensions perfectly comply with SAE standards (Society of Automotive Engineers) with 1/4 inch male threading and 5/16 inch female threading. This configuration enables optimal compatibility with all equipment certified for R410A refrigerant.

The adapter is designed to withstand the high pressures characteristic of R410A, which can reach up to 42 bars on the high-pressure side. Its precision machining guarantees perfect sealing preventing any refrigerant gas leakage, essential for energy performance and environmental protection.

Installation and practical use

Installing this adapter requires no specific tooling beyond the flat wrenches or adjustable wrenches commonly used in refrigeration. Simply screw the adapter manually onto the 1/4'' SAE male fitting, then tighten moderately using the appropriate tool.

The 5/16'' female side then receives the hose or equipment to be connected. It is recommended to apply moderate tightening torque to avoid damaging the threads while ensuring sealing. Excessive tightening could deform the sealing surfaces.

Before each use, it is advisable to check the condition of the threads and clean the contact surfaces to eliminate any trace of oil or debris. After installation, a leak test with nitrogen or electronic leak detector is recommended to validate the connection.

Expert advice and complementary products

To optimize the use of this adapter, professionals recommend building a varied adapter kit covering the main conversions encountered in the field. Combination with digital manifolds and high-pressure hoses specific to R410A guarantees rapid and efficient interventions.

During maintenance operations, it is wise to have electronic leak detectors calibrated for R410A, as well as replacement seals and sealing caps to secure circuits during work breaks.

A frequent error consists of using adapters not certified for R410A high pressure. This gas presents operating pressures higher than the R22 it replaces, making the use of accessories specifically designed for these constraints essential.

For technicians regularly working on varied installations, acquiring a professional adapter case including the main SAE conversions allows reducing intervention times and improving on-site versatility.
