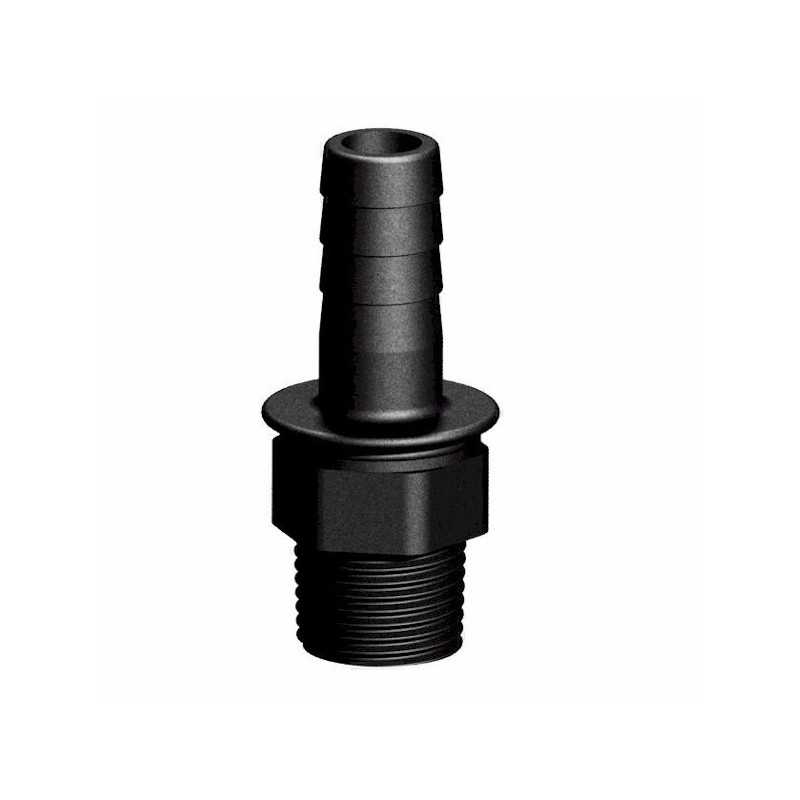

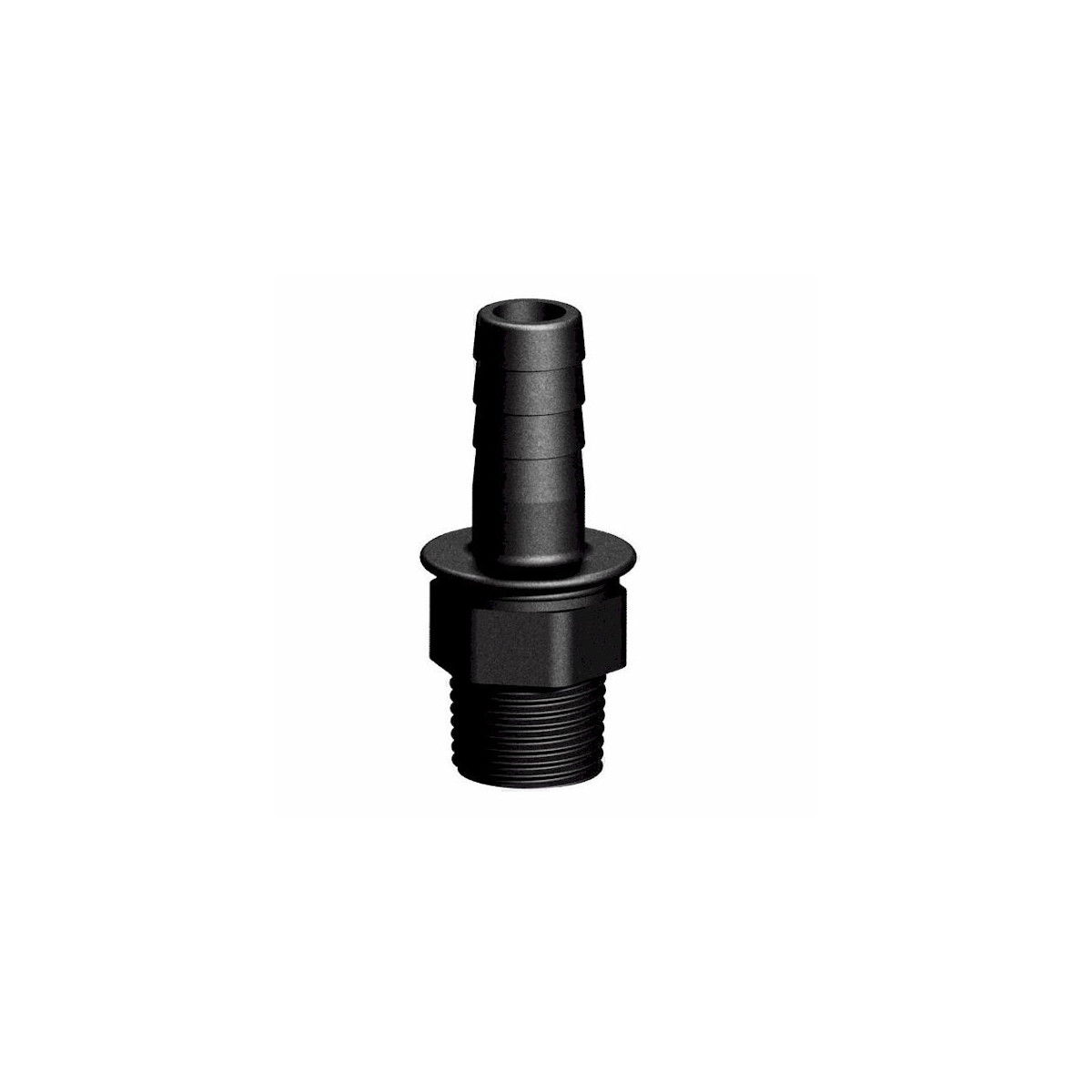

Male fitting 1/2'' - straight barbed Ø13mm

Male fitting 1/2'' - straight barbed Ø13mm (Reference: 100122) from CPP brand represents the ideal technical solution for connecting your flexible hoses to installations equipped with female BSP threads. Made from polypropylene reinforced with 30% glass fiber, this barbed fitting offers high rigidity and exceptional hardness, guaranteeing long-lasting performance in the most demanding environments.

Applications and use cases

This straight barbed fitting finds its place in multiple professional and domestic applications. In agriculture, it allows connecting irrigation systems to water distribution networks, ensuring perfect sealing between flexible hoses and rigid fittings. Industry professionals use it for fluid circuits, high-pressure cleaning installations and non-aggressive liquid transfer systems.

For individuals, this fitting proves essential in gardens and green spaces, efficiently connecting watering hoses to taps, valves or automatic systems. Its compatibility with hoses of 13mm internal diameter makes it a versatile element for all domestic installations requiring a safe and waterproof connection.

Technical specifications and innovation

The composition of polypropylene filled with 30% glass fiber gives this fitting remarkable mechanical properties. This reinforcement filler significantly increases structural rigidity and stress resistance, while maintaining excellent chemical resistance to commonly used fluids.

The male 1/2'' gas thread complies with BSP (British Standard Pipe) standards, guaranteeing universal compatibility with all female fittings on the market. The barbed end with 13mm external diameter is specially designed to ensure easy insertion and optimal retention of the flexible hose, avoiding any risk of disconnection under pressure.

The geometry of the barbs has been optimized to create maximum grip surface with the internal walls of the hose, uniformly distributing stresses and extending the service life of the assembly. This technical design ensures reliable sealing even in case of pressure or temperature variations.

Installation and practical use

Installing this barbed fitting is done in two simple and quick steps. Start by manually screwing the male 1/2'' thread into the female fitting of your installation, then tighten moderately using a flat wrench to guarantee sealing without risking damage to the thread.

For connecting the flexible hose, slightly warm the end in lukewarm water to soften the material and facilitate fitting onto the barbed end. Push the hose firmly until it passes the last barb, thus ensuring a secure assembly. To reinforce the connection, using a hose clamp is recommended, particularly for pressurized applications.

Maintenance is limited to periodic cleaning with clean water to eliminate lime deposits or impurities. Polypropylene naturally resists corrosion and UV, requiring minimal maintenance even in permanent outdoor use.

Expert tips and advice

To optimize your installation's performance, combine this fitting with stainless steel hose clamps available in our range. This combination guarantees perfect sealing and increased longevity, particularly important in humid or corrosive environments.

When choosing your flexible hoses, favor hoses with 13mm internal diameter and sufficiently thick walls to resist insertion on the barbs. Hoses that are too thin risk cracking, while hoses that are too rigid may not perfectly match the end's contours.

A professional tip consists of applying a thin layer of food-grade lubricant on the barbed end before hose insertion. This technique greatly facilitates assembly while preserving the integrity of the flexible hose. For frequent disconnections, this lubrication also allows easier disconnection.

For seasonal use, remember to completely drain your circuits before freezing periods to avoid any risk of bursting. Although polypropylene resists frost better than other materials, prevention remains the best protection for your installations.

Technical characteristics
