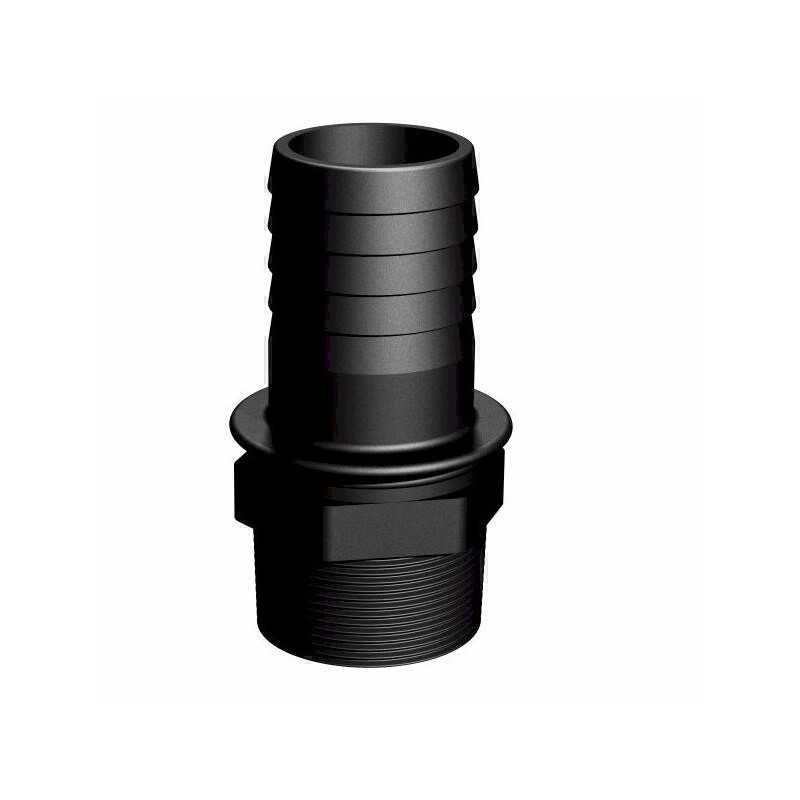

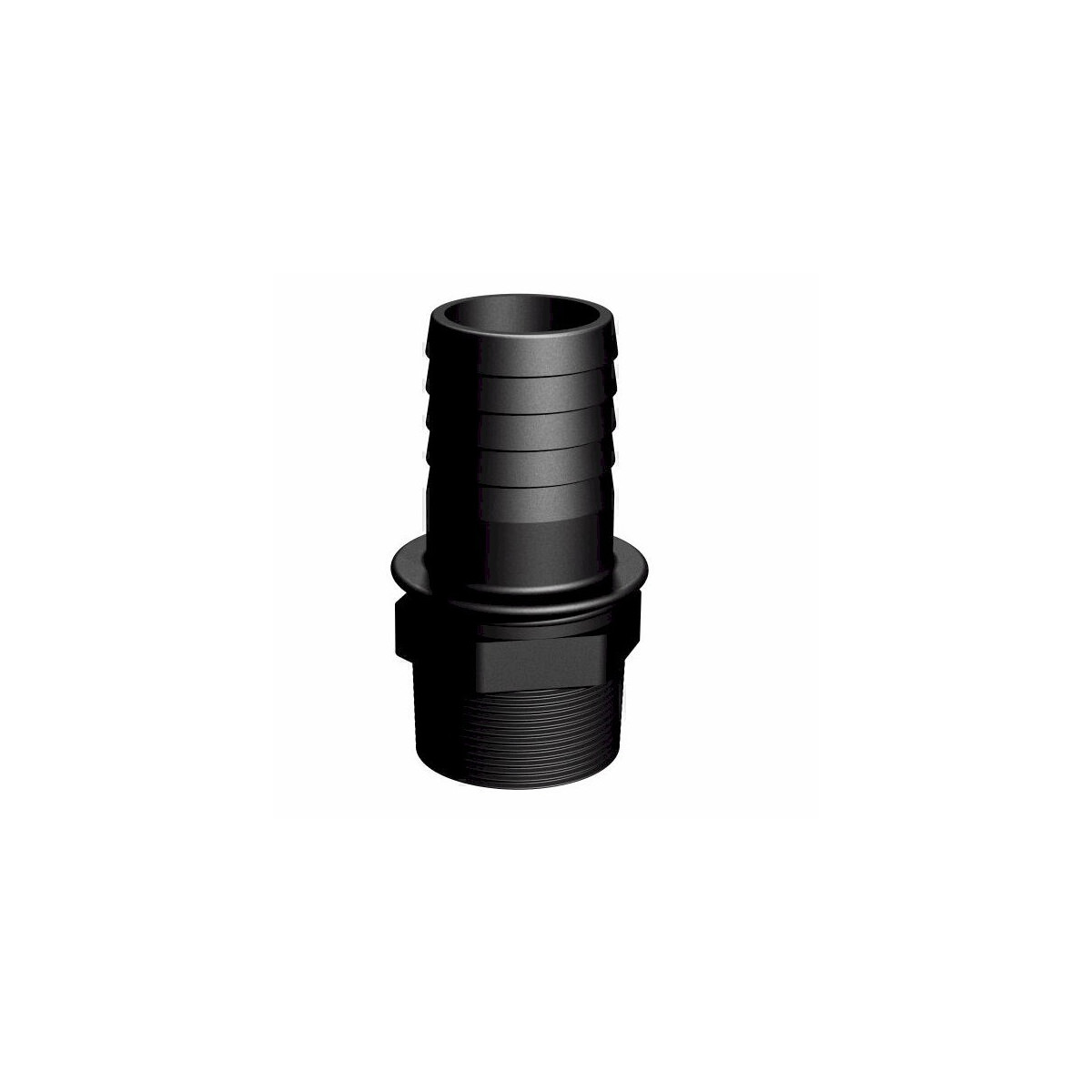

2'' male fitting - straight barbed Ø50mm

2'' male fitting - straight barbed Ø50mm (Reference: 100127) from CPP brand represents a top-tier technical solution for your fluid connection installations. This glass fiber reinforced polypropylene fitting combines industrial robustness and machining precision to meet the strictest requirements of professionals and informed individuals.

Applications and use cases

This barbed fitting finds its place in numerous industrial and domestic applications. It is particularly suitable for agricultural installations, irrigation systems, IBC tanks, and water distribution networks. Its 2'' BSP (British Standard Pipe) male thread ensures optimal compatibility with most standard market equipment.

Agricultural operations use it to connect their irrigation systems, while food processing industries appreciate it for its chemical resistance. Private users choose it for their garden layouts and rainwater harvesting installations.

Technical specifications and innovation

The composition of polypropylene filled with 30% glass fiber gives this fitting exceptional mechanical properties. This mineral filler significantly improves rigidity, hardness and resistance to deformation under stress. The material perfectly resists temperature variations, common chemical agents and UV rays.

The Ø50mm barbed end is precision machined to guarantee a watertight assembly with flexible hoses. The barbs are dimensioned to ensure optimal hose adhesion while facilitating assembly. The 2'' male thread strictly complies with BSP standards for universal compatibility.

Installation and use

Installing this barbed fitting is simple and quick. For assembly, place the flexible hose on the barbed end ensuring it slightly exceeds the last barb. Then tighten a stainless steel hose clamp suitable for the diameter to guarantee watertightness.

For the threaded side connection, use PTFE tape or thread sealing paste on the male threads. Screw by hand then finish with a pipe wrench with moderate tightening torque to avoid thread damage. Maintenance is limited to periodic cleaning and checking joint watertightness.

Expert advice and product synergies

To optimize your installations, combine this fitting with our superior quality stainless steel hose clamps that guarantee lasting watertightness. Our flexible PVC hoses with Ø50mm inner diameter perfectly fit the barbs of this fitting.

For demanding applications, consider adding a check valve upstream to protect your installation. Ball valves 2'' ideally complement this fitting to create modular distribution systems.

Professional tip: In outdoor environments, protect threaded connections with protective caps during periods of non-use. This prevents dirt accumulation and facilitates future disassembly.

Technical characteristics
