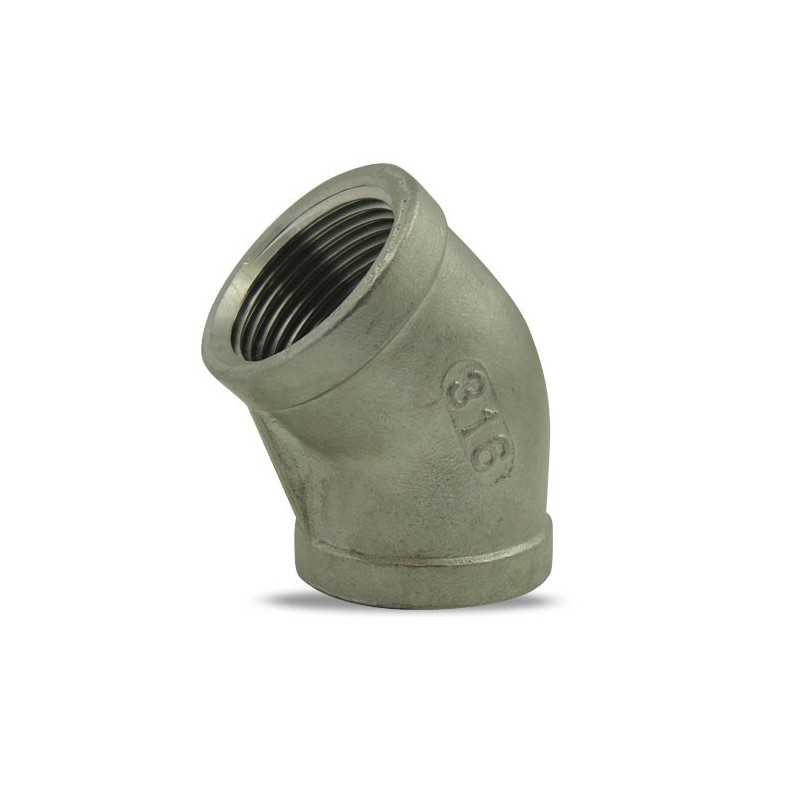

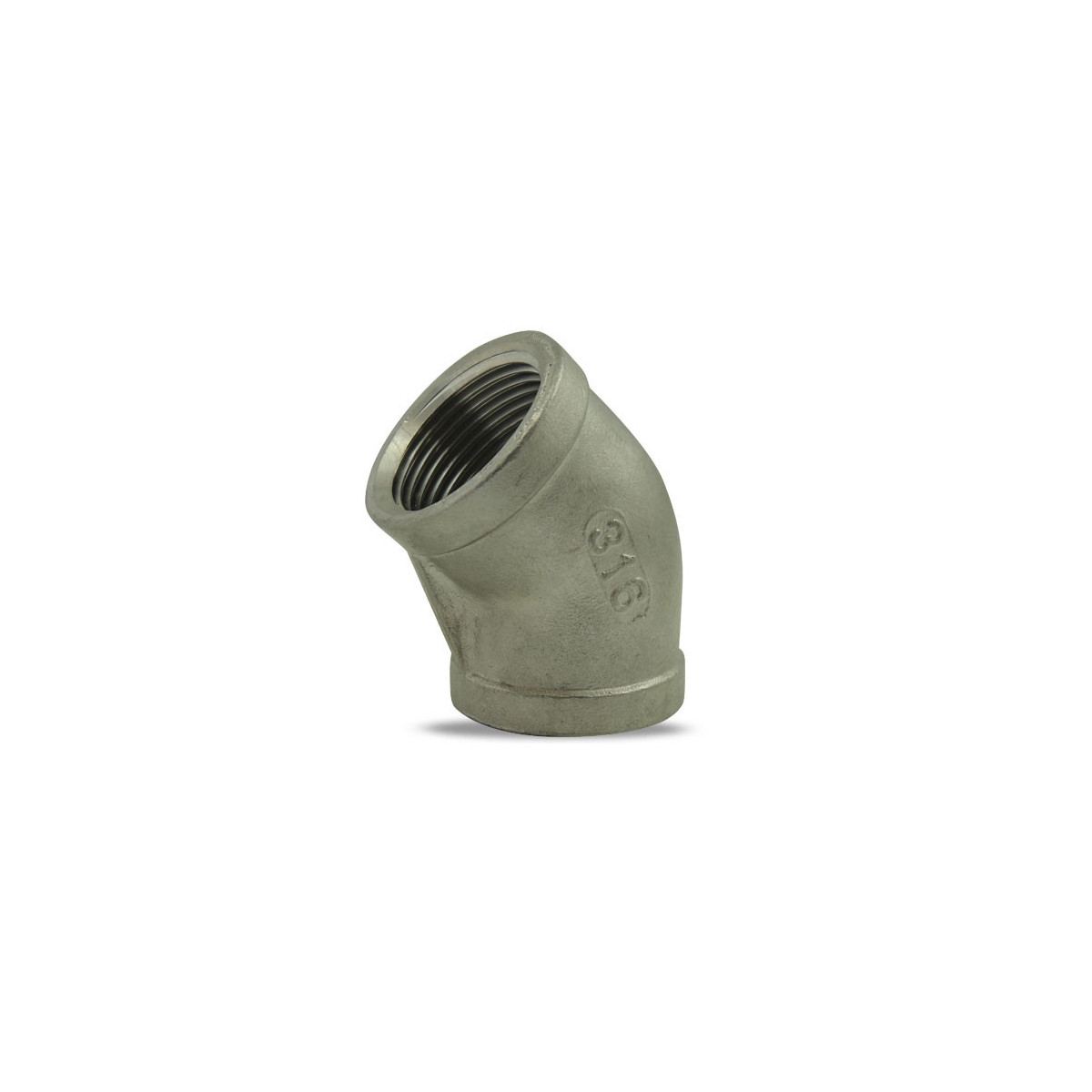

45° Female/Female Elbow in Stainless Steel 316

45° Female/Female Elbow in Stainless Steel 316 Ezfitt (Reference: 8041) represents excellence in piping connections for professional and industrial installations. Made from AISI 316 stainless steel, this component guarantees exceptional corrosion resistance and long-term durability in the most demanding environments.

Applications and Benefits

This 45° female/female elbow finds its place in numerous professional applications. In the food industry, it ensures smooth liquid flow while meeting the strictest hygiene standards. Chemical installations benefit from its resistance to corrosive agents, while industrial plumbing systems exploit its robustness under high pressures.

Pharmaceutical, petrochemical and water treatment sectors particularly value its compatibility with aggressive fluids. Its female/female design allows perfect integration into existing circuits, reducing modification costs and optimising installation efficiency.

Technical Specifications and Innovation

The AISI 316 stainless steel used in this fitting contains molybdenum, giving it superior resistance to pitting and crevice corrosion. This optimised chemical composition allows use in marine, chlorinated or acidic environments without altering mechanical properties.

The Rp threaded ends comply with ISO 7-1 (BSPT), guaranteeing universal compatibility with international standards. The tapered thread ensures a perfect seal without requiring an additional gasket in most applications. Ezfitt''s machining precision guarantees strict dimensional tolerances for optimal assembly.

ISO 4144 certification attests to compliance with international quality and safety requirements, covering aspects of mechanical resistance, chemical composition and surface finish.

Installation and Practical Use

Installation of the 45° elbow is carried out simply by screwing onto existing piping elements. It is recommended to use an appropriate adjustable wrench to tighten progressively without forcing, thus preserving the integrity of the thread. The application of a stainless steel compatible sealant may be necessary depending on the type of fluid being conveyed.

For high-temperature applications, thermal expansion should be accounted for by providing appropriate expansion compensators. The temperature range of -20 to +220°C covers the majority of common industrial applications.

Maintenance is limited to periodic leak checks and cleaning if necessary. The stainless steel surface can be cleaned with non-chlorinated products to preserve the appearance and anti-corrosion properties.

Expert Advice and Product Synergies

To optimise your installations, pair this 45° elbow with straight fittings and tees from the same Ezfitt stainless steel 316 range. This material homogeneity avoids galvanic coupling and ensures an optimal service life for the entire circuit.

In food industry installations, favour a mirror-polished interior finish to facilitate cleaning and reduce contamination risks. For chemical applications, verify specific compatibility with your products using stainless steel 316 chemical resistance charts.

Avoid using carbon steel tools that could contaminate the stainless steel surface and create corrosion points. Prefer tools made of stainless steel or with a protective coating.

In marine or chlorinated environments, regular rinsing with fresh water significantly extends the service life of the fitting. For cryogenic applications close to -20°C, regularly check thermal stresses on the fixings.

Technical Characteristics
