Technical sheet

Summary #1

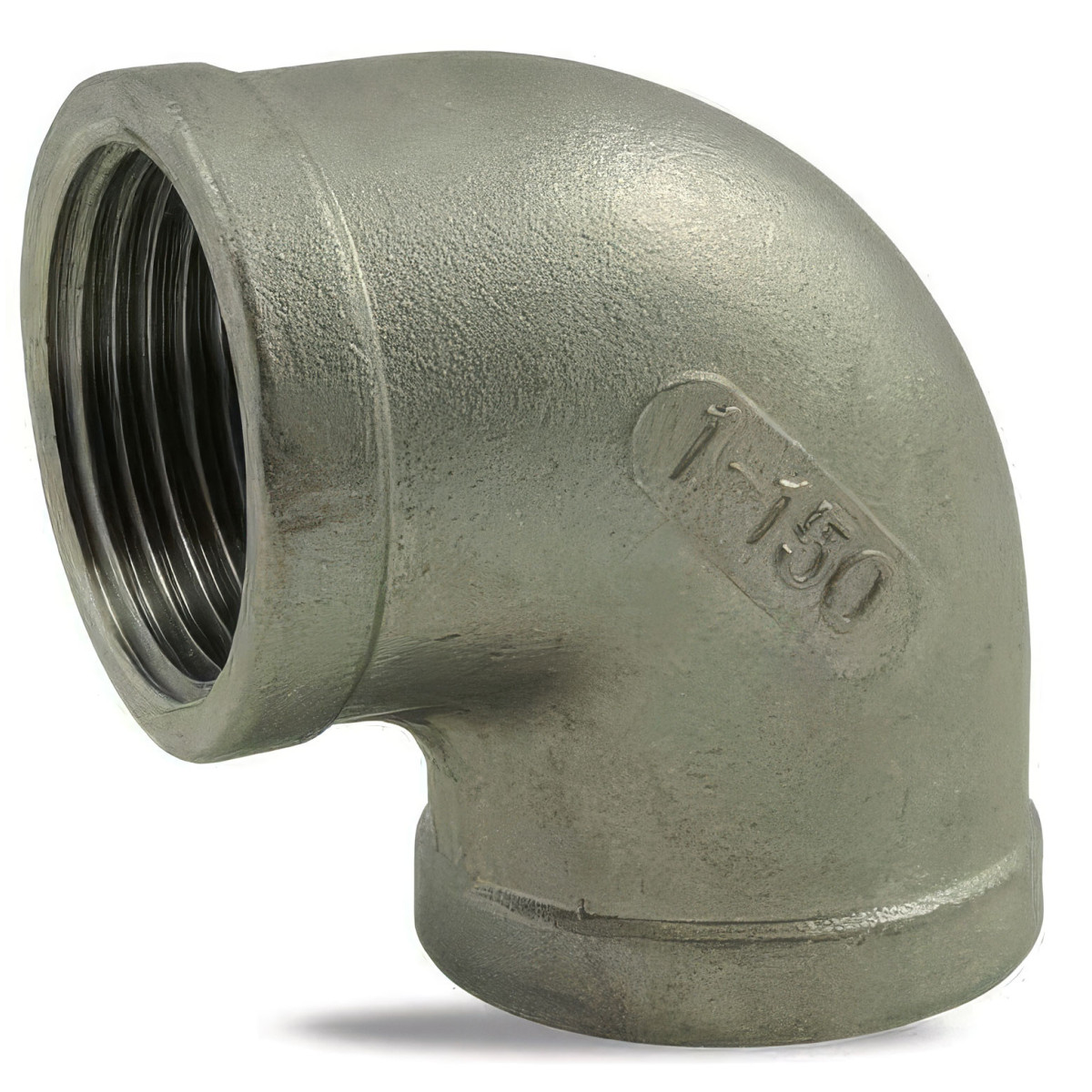

The 90° female/female elbow is an essential connecting component for structuring your piping networks, allowing for a sharp and precise change of direction at right angles. Designed according to ISO 4144, this fitting guarantees perfect interchangeability and a high level of safety for all your fluid transport installations. Its careful construction ensures optimal flow while minimizing pressure drops within your hydraulic or industrial pneumatic systems.

Summary#2

This elbow is entirely machined from AISI 316 stainless steel, a premium material known for its exceptional resistance to corrosion, acids and saline environments. Thanks to its intrinsic properties, it can withstand a very wide operating temperature range from -20°C to +220°C. This robustness makes it the preferred choice for the petrochemical, pharmaceutical and food and beverage sectors, where the inertia of the material is crucial to ensure product purity and infrastructure sustainability.

Summary#3

Calibrated for a nominal pressure of PN 20 bar, this fitting offers optimum safety for discharge circuits and pressure transfer networks. Its robust structure is able to withstand the severe mechanical stresses encountered in shipbuilding, steel mills or heavy industrial maintenance. By choosing this component, you ensure the future-proof of your systems and minimize the risk of structural failure in the long term, even under intensive service conditions.

Summary#4

The female connection of this elbow complies with ISO 7-1 (BSPT) with a cylindrical thread (Rp), designed to receive tapered male ends (R). This technical specificity allows a hermetic connection by direct contact of the threads, ensuring a reliable metal-to-metal seal. This thread standard greatly facilitates the integration of the elbow on a wide range of pre-existing valves, pumps and piping, while ensuring quick assembly and simplified maintenance.

Summary#5

The 90° female/female elbow is the universal solution for getting around obstacles or changing the orientation of your pipe lines in tight spaces. Its careful workmanship limits internal turbulence and fouling of the network, which is essential for water treatment, agricultural irrigation or complex chemical processes. This AISI 316 stainless steel fitting is a long-term investment, adapting to the most demanding configurations with constant reliability and proven resistance to external aggressions.

Specific references

EAN13

3760269585041
