Technical sheet

Summary #1

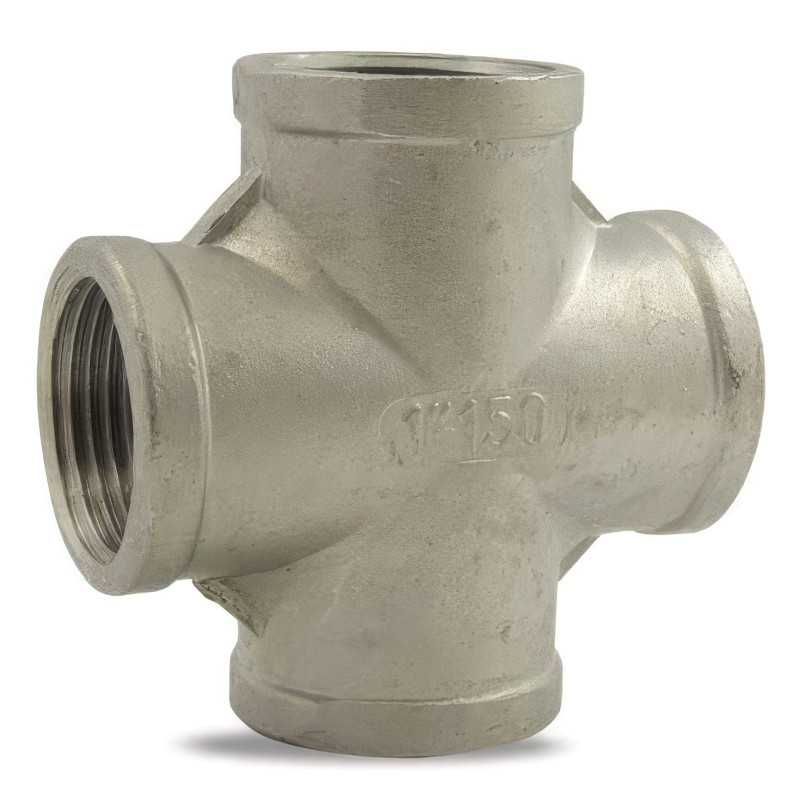

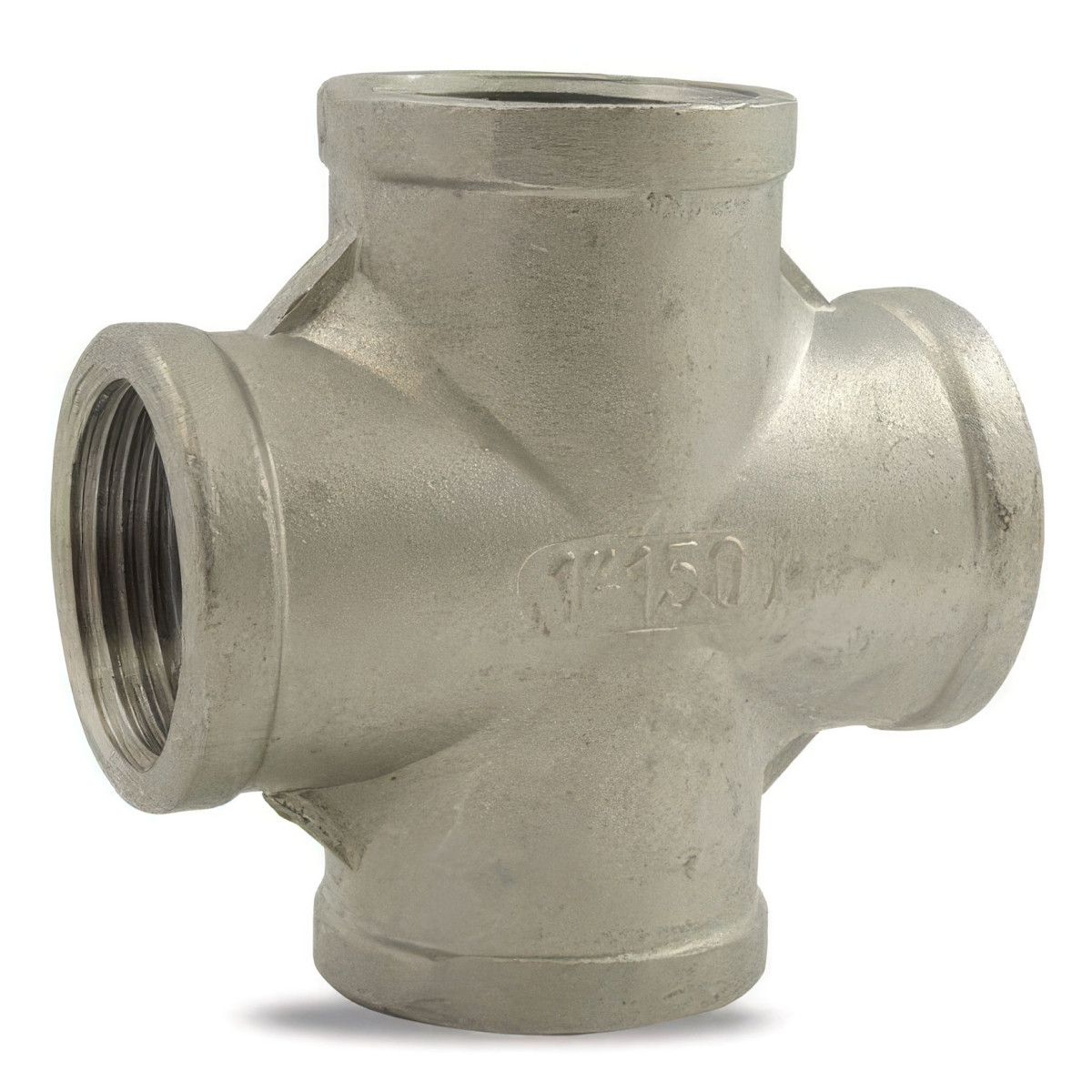

The 316 Stainless Steel Female/Female/Female/Female Cross is a strategic distribution fitting designed to divide or group fluid flows to four distinct directions within a piping network. Manufactured according to the ISO 4144 standard, this machined casting part guarantees exemplary reliability and rigorous compliance with industrial safety standards. Its cross-shaped configuration allows for symmetrical pressure and flow distribution, providing a compact and robust solution for complex connection nodes.

Summary#2

This fitting is made entirely of AISI 316 stainless steel, a high-end stainless steel grade known for its exceptional resistance to corrosion, acids and saline environments. Thanks to its intrinsic properties, this cross can withstand a very wide temperature range from -20°C to +220°C. It is therefore particularly suitable for demanding sectors such as petrochemicals, pharmaceuticals and food and beverage, where the inertia of the material is crucial to preserve the integrity of the products transferred.

Summary#3

Calibrated for a nominal pressure of PN 20 bar, the ISO 4144 series female cross offers optimum safety for discharge circuits and pressure distribution systems. Its reinforced one-piece structure is able to withstand the mechanical stresses and vibrations encountered in steel mills, shipbuilding or heavy industrial maintenance. By choosing this component, you ensure structural stability to your networks while minimizing the risk of leaks at multiple junction points.

Summary#4

The four holes in this fitting have threads that comply with ISO 7-1 (BSPT), specifically with cylindrical (Rp) female ends. This international standard ensures a hermetic connection with tapered (R) male ends, guaranteeing a metal-to-metal contact seal of the threads. This machining accuracy makes it much easier to install valves, pressure gauges or measuring probes on your manifolds, while allowing for quick assembly and simplified maintenance of each channel.

Summary#5

The F/F/F/F cross is the ideal solution for centralizing branches or creating compact manifolds without having to multiply intermediate connections. Its neat finish limits internal turbulence during flow separation, which is essential for water treatment, intensive agricultural irrigation or chemical processes. This AISI 316 stainless steel fitting is a long-term investment, adapting to the densest piping configurations with constant reliability and proven resistance to extreme thermal variations.

Specific references

EAN13

3760269585348
